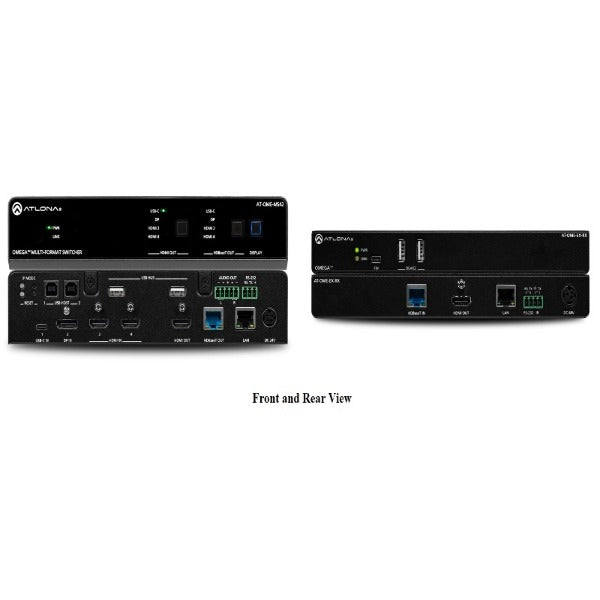

The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs, plus HDMI and HDBaseT outputs. It is also available as the AT-OME-MS42-KIT with the AT-OME-EX-RX receiver. Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse. It is available with the OME-EX-RX receiver as the OME-MS42-KIT.
The Atlona AT-OME-MS42 is a 4x2 matrix switcher with HDMI, USB-C, and DisplayPort inputs, plus HDMI and HDBaseT outputs. It is also available as the AT-OME-MS42-KIT with the AT-OME-EX-RX receiver. Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-MS42 is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-MS42 includes USB 2.0 and USB-C interfaces for three host PCs, plus two peripheral devices such as a camera, microphone, speakerphone, or keyboard and mouse. It is available with the OME-EX-RX receiver as the OME-MS42-KIT.
- Video
- HDMI: 2.0 (1.4 when downscaled)
- HDCP: 2.2 (will downscale reporting to match connected devices: does not downscale HDCP signal)
- VESA (@ 60Hz): 2560x1600; 2048x1536; 1920x1200; 1680x1050; 1600x1200; 1440x900; 1400x1050; 1280x1024; 1280x800; 1366x768; 1360x768; 1152x864; 1024x768; 800x600; 640x480
- UHD/HD: 4096x2160 @60¹/50/30/25/24Hz; 3840x2160 @60¹/50/30/25/24Hz; 1920x1080p @60/59.9/50/30/29.97/25/24/23.98 Hz; 1920x1080i @30/29.97/25Hz; 1280x720p @60/59.94/50Hz; 720x576p @50Hz; 720x576i @50Hz; 640x480p @60/59.96Hz; 640x480i @30Hz
- Scaler²: In: 4K @24Hz; 4K @30Hz; 4K @60Hz, 4:2:0; Out: 1080p @24Hz; 1080p @30Hz; 1080p @60Hz (YUV/RGB, 4:4:4)
- USB-C: Up to 4K/UHD @60Hz
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8bit, 10bit, 12bit
- HDR³: HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @60Hz
Audio - HDMI/HDBaseT Pass-Through Formats: LPCM 2.0; LPCM 5.1; LPCM 7.1; Dolby® Digital; Dolby Digital Plus™; Dolby TrueHD; Dolby Atmos®; DTS® Digital Surround™; DTS-HD Master Audio™; DTS:X®
- Bit Rate: 24Mbits MAX
- Analog Audio
- Format: 2-channel stereo
- Balanced Output: +4dBu, nominal gain; +20dBu headroom
- Frequency Response: 20Hz - 20kHz, ±0.5dB
- THD+N: <0.004% @20Hz to 20kHz
- SNR: >105dB @1kHz, 0 clipping @0dBFS, unweighted
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
USB - Signal: 2.0
- Max Data Rate: 120Mbps
- USB-C: Supports Audio, Video, device & host data, & up to 60W power charging
Control - RS-232: Device control & configuration; Bidirectional pass-through from control system over HDBaseT; Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- IP: Protocols: Https, Telnet, mDNS; Modes: DHCP, Static: selectable through front panel and webGUI
- CEC: Yes
Resolution/Distance (4K/UHD): - HDMI IN/OUT: 15' (5m)
- CAT5e: 295' (90m)
- CAT6/6a/7: 330' (100m)
- Resolution/Distance (1080p):
- HDMI IN/OUT: 30' (10m)
- CAT5e: 330' (100m)
- CAT6/6a/7: 330' (100m)
Connectors, Controls, and Indicators - HDMI IN 2: Type A, 19-pin female
- DP IN 1: DisplayPort, female
- USB-C IN 1: USB Type-C v3.1, 24-pin female, AV input (Alternate Mode)
- HDMI OUT 1: Type A, 19-pin female
- HDBaseT OUT 1: RJ45, female
- USB HUB 2: Type A, 4-pin female
- USB HOST 2: Type B, female
- AUDIO OUT 1: 5-pin captive screw, balanced / unbalanced 2-channel
- RS-232 1: 3-pin captive screw (bidirectional)
- LAN 1: RJ45, 100Base-T
- PWR 1: 4-pin DIN, locking
- Control Buttons: HDMI OUT/HDBaseT OUT/DISPLAY IP MODE/RESET - 3: Momentary, Tact-Type & 2: Momentary, Recessed
- Function Indicators: INPUT PWR/LINK/IP MODE/RESET - 8 & 4: Blue, LED
General - Operating Temperature: 32 - 113°F (0 - 45°C)
- Storage Temperature: -4 - 140°F (-20 - 60°C)
- Operating Humidity (RH): 20 - 90%, non-condensing
- Consumption Unit only: 8.6W
- Full load: 104 W (while powering USB-C device up to 60W, HDBaseT PoE device up 30W, and USB type A devices up to 2.5W each)
- External Power Supply 100: 240V AC, 50/60Hz
- Output: 24V / 5A DC
- Device (HxWxD): 1.73 x 8.64 x 10"
- Weight: 3.46LBs
- Certification: Device CE, FCC, UL
- Notes: ¹ 4K/UHD p60 4:4:4 supported on input/output HDMI and USB-C input ports, 4K/UHD p60 4:2:0 is supported on HDBaseT output ² Scaler does not support frame rate conversion ³ HDR supported on local output only
